Glass door closer hardware

Design meets functionality

We understand that architects and commercial interior designers not only aesthetic coherence but also reliable performance in hardware selections. The Addison range features a variety of door closers that are engineered to seamlessly integrate with both contemporary and traditional architectureal styles, enhancing the visual continuity and operational efficiency of commercial spaces.

Each product in the Addison series is designed with precision to ensure superior durability and exceptional performance. From smooth closing action to adjustable speed settings, these door closers provide optimal control, contributing to the comfort and safety of commercial environments. The sleek and unobtrusive designs are crafterd to complement the clean lines of glass doors, ensuring that they enhance rather than detract from your architectural vision.

We invite you to explore the possibilities with Addison Door Closers. Whether you are designing a boutique retail space, a modern office building or a sophisticated hospitality venue, our products offer the versatility and technical excellence required to meet your projects specific needs. Discover how our door closers can make a subtle yet significant impact on your next architectural endeavor.

Commercial door solution brochure including Addison, Stella and Ezi Rail brands.

Commercial Door Solutions Brochure

Commercial door patch closers

The ultimate in style, functionality, reliability and performance, the addison patch closer is the perfect choice for your glass door or pool gate operator.

Eliminating the need to dig holes for floor springs, the Addison patch closer facilitates faster installation while maintaining the integrity of the concrete slab.

Fully adjustable closing and latching speeds combined with multi-directional adjusting base plate delivers precise fitting and excellent performance on every installation.

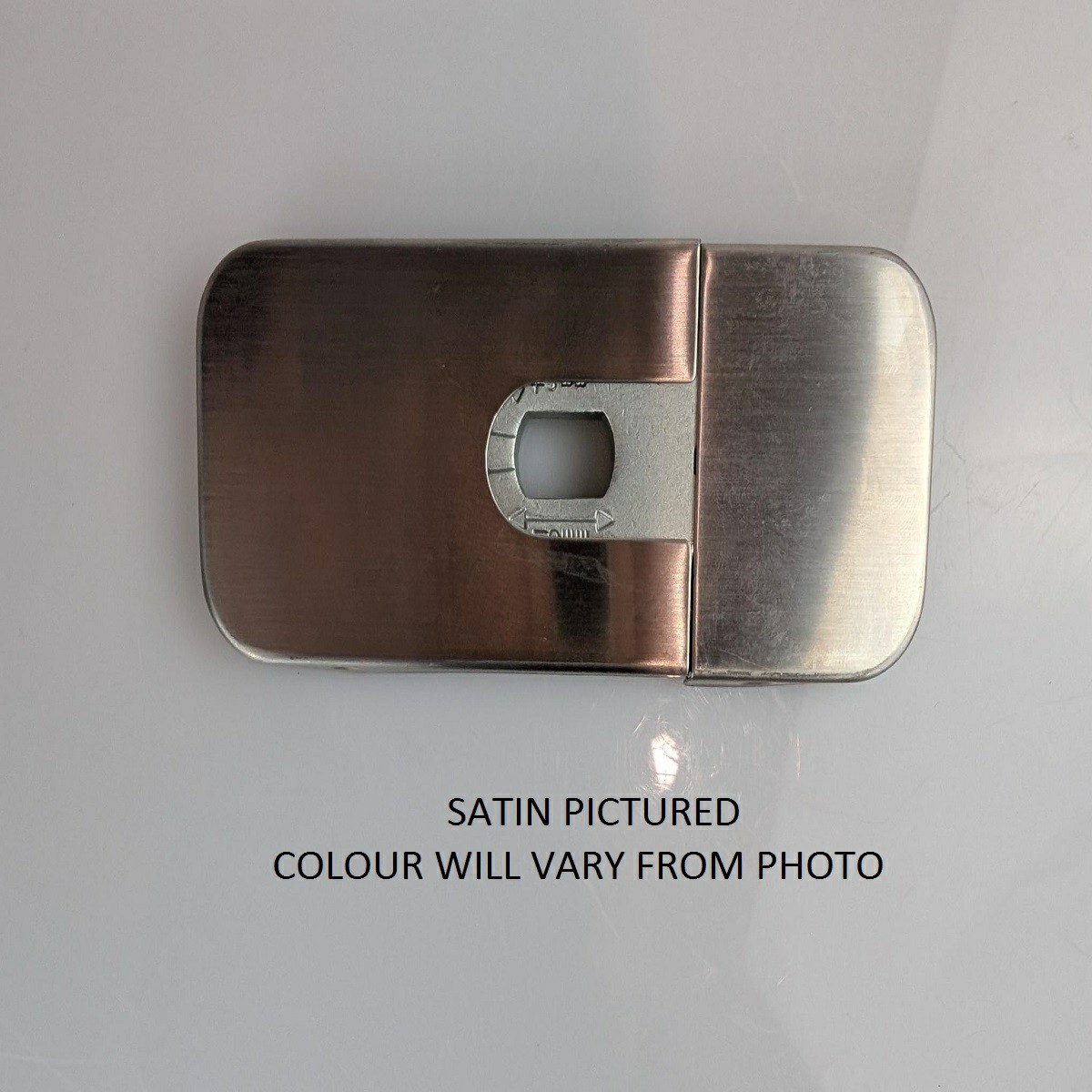

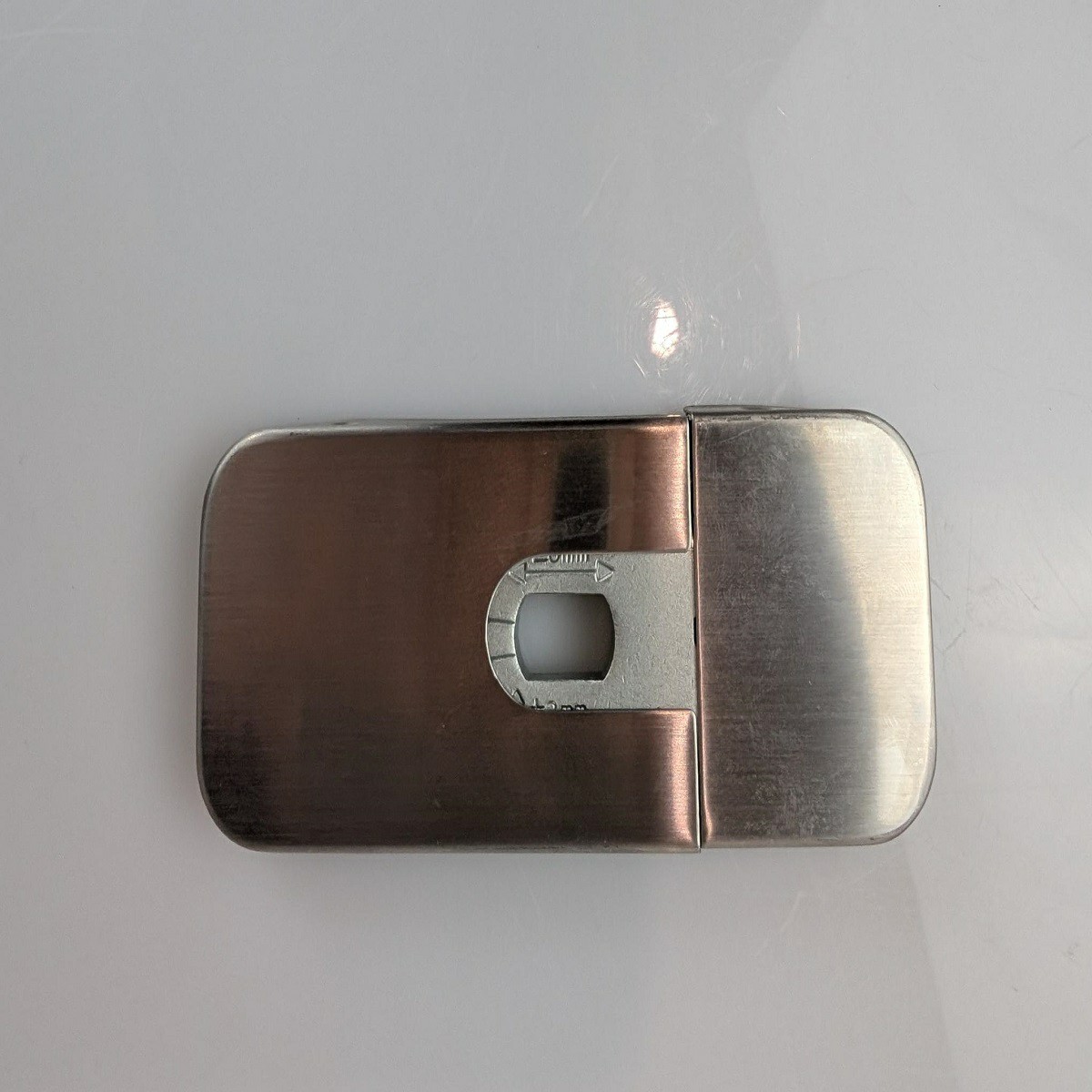

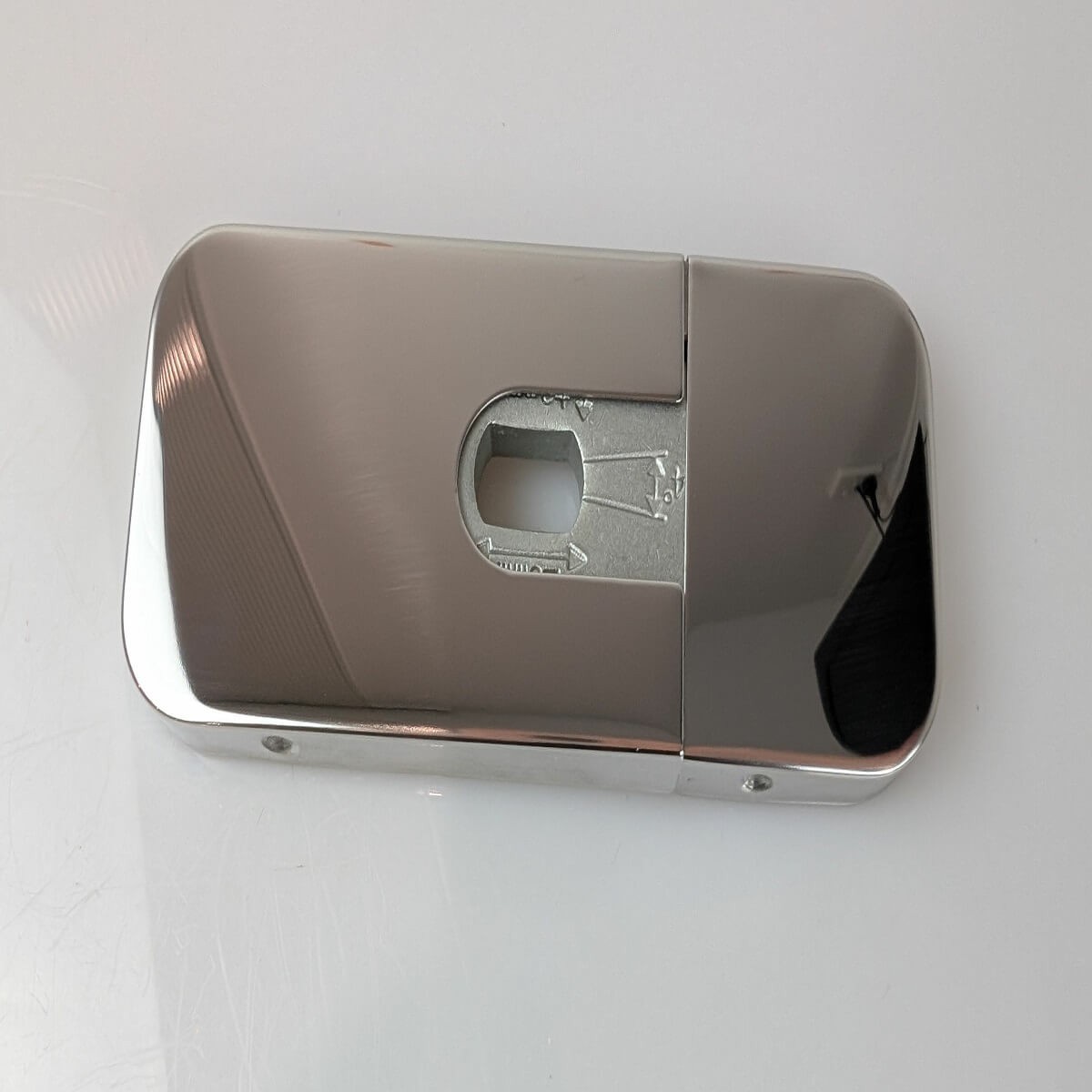

Addison commercial glass door patch closers — Left to Right - Matt Black (MB), Satin Stainless Steel (SSS) and Polished Stainless Steel (PSS).

ADD100 for 740 mm and 1000 mm wide doors
ADD105 for 1000 mm to 1200 mm wide doors
Glass thickness 10 mm to 15 mm
Available in hold open and non-hold open
Adjustable closing and latching speeds
Fast installation without the need to cut concrete.

ADD 100 Medium Duty Patch Closer

Description	Type	Code
ADD 100 Medium duty hydraulic patch closer 750mm to 1000mm doors 100kg maximum weight	Hold Open	ADD.100 HO PSS
		ADD.100 HO SSS
		ADD.100 HO MB
	Non Hold Open	ADD.100 NHO PSS
		ADD.100 NHO SSS
		ADD.100 NHO MB

ADD 105 Heavy duty patch closer

Description	Type	Code
ADD 105 Heavy duty hydraulic patch closer 1000mm to 1200mm doors 100kg maximum weight	Hold Open	ADD.105 HO PSS
		ADD.105 HO SSS
		ADD.105 HO MB
	Non Hold Open	ADD.105 NHO PSS
		ADD.105 NHO SSS
		ADD.105 NHO MB

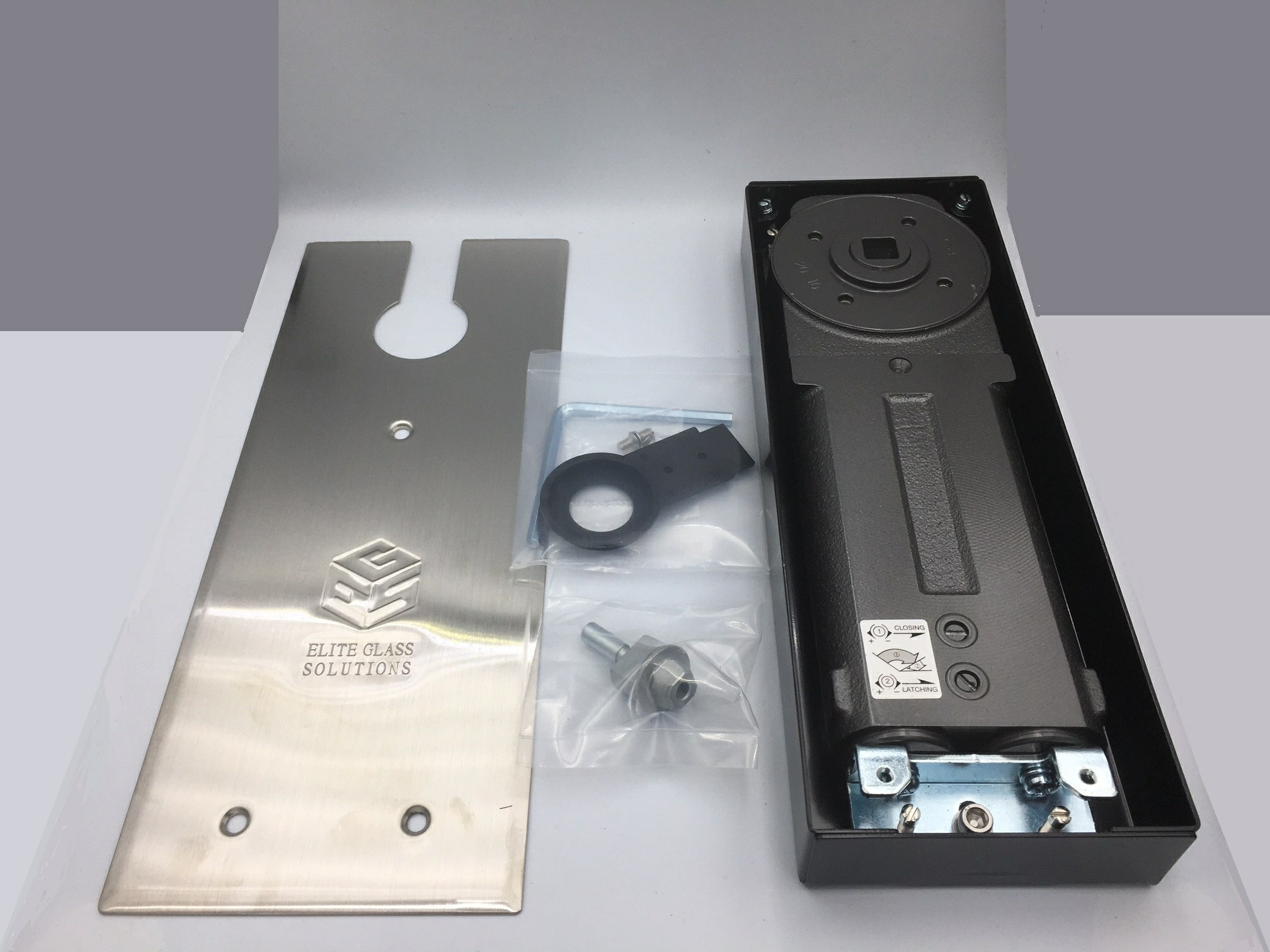

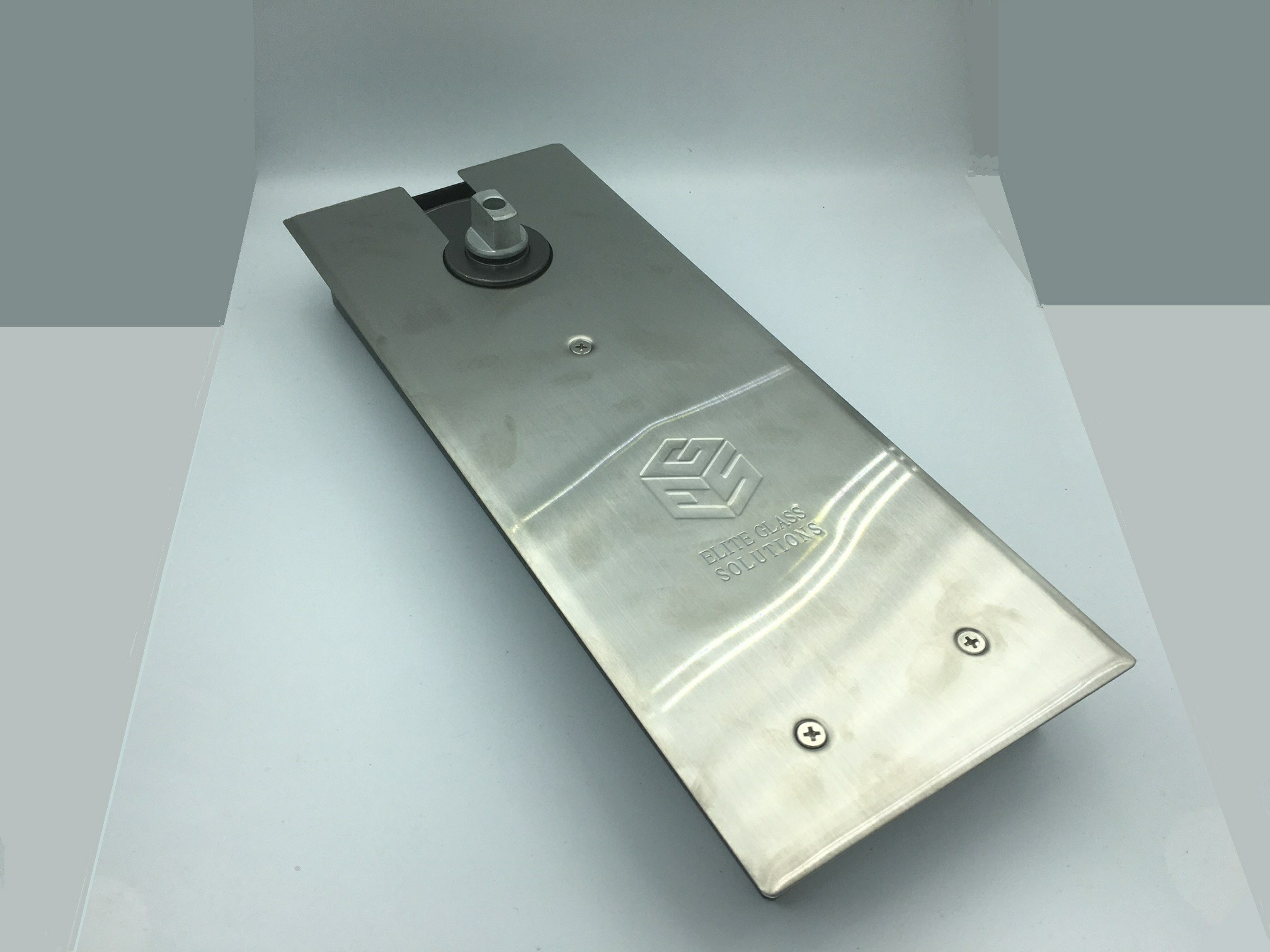

Commercial floor springs for glass doors

Addison floorsprings offer outstanding performance for all door operating applications. From 16Nm thorugh to 56Nm, hold open and non hold open, interchangable spindles from 5mm to 50mm and a 10 year warranty, there's a floorspring to meet your exact requirements.

ten year warranty on addison door closers

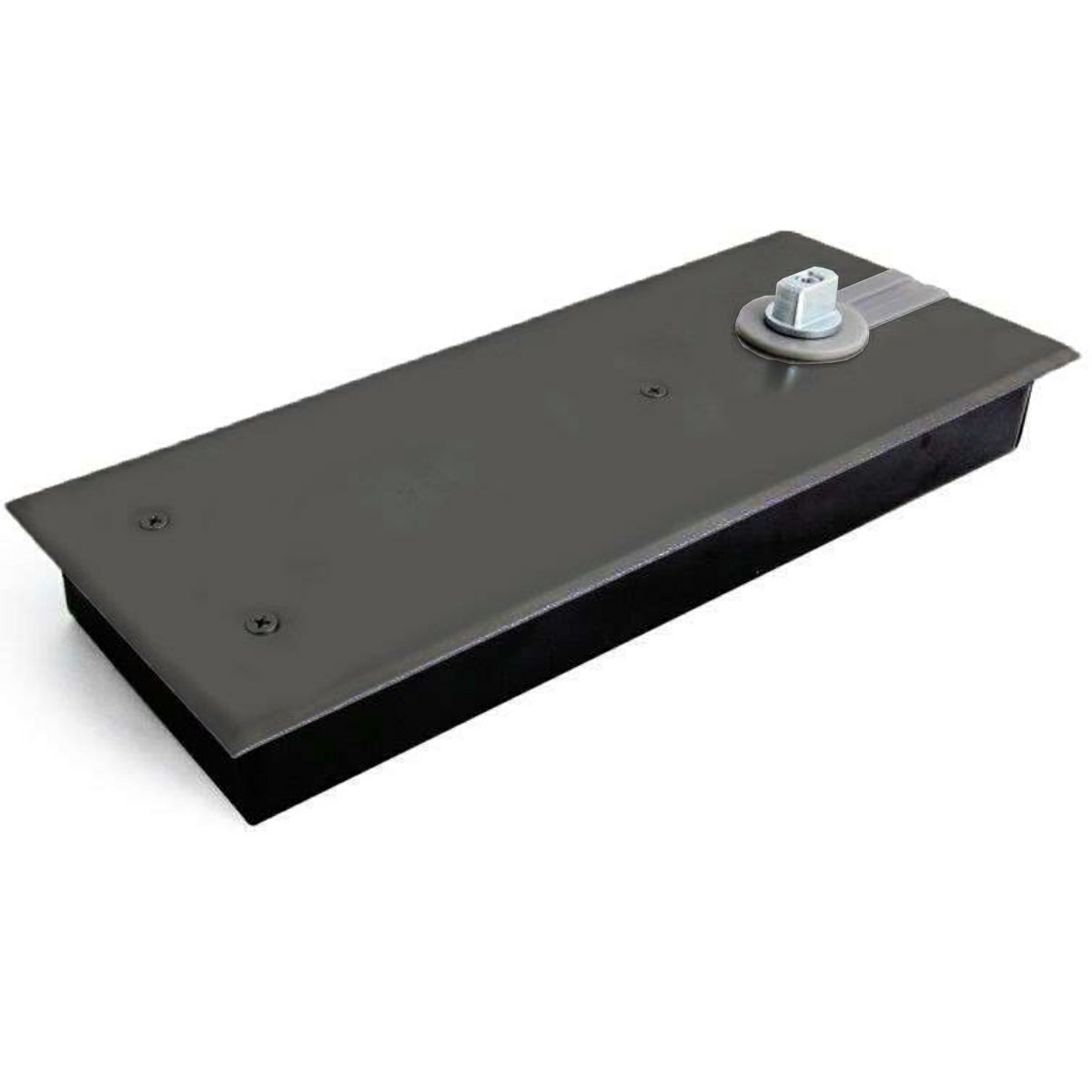

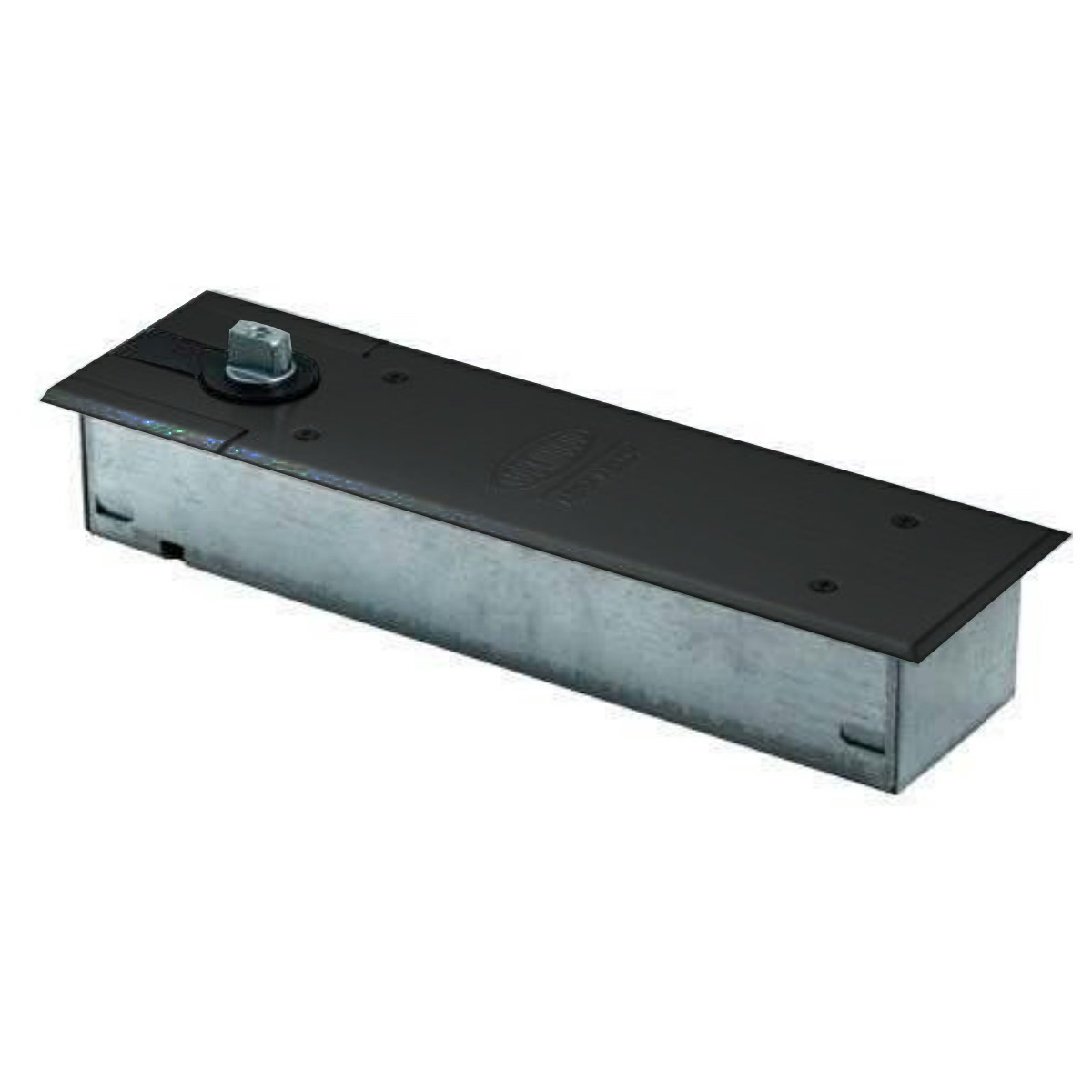

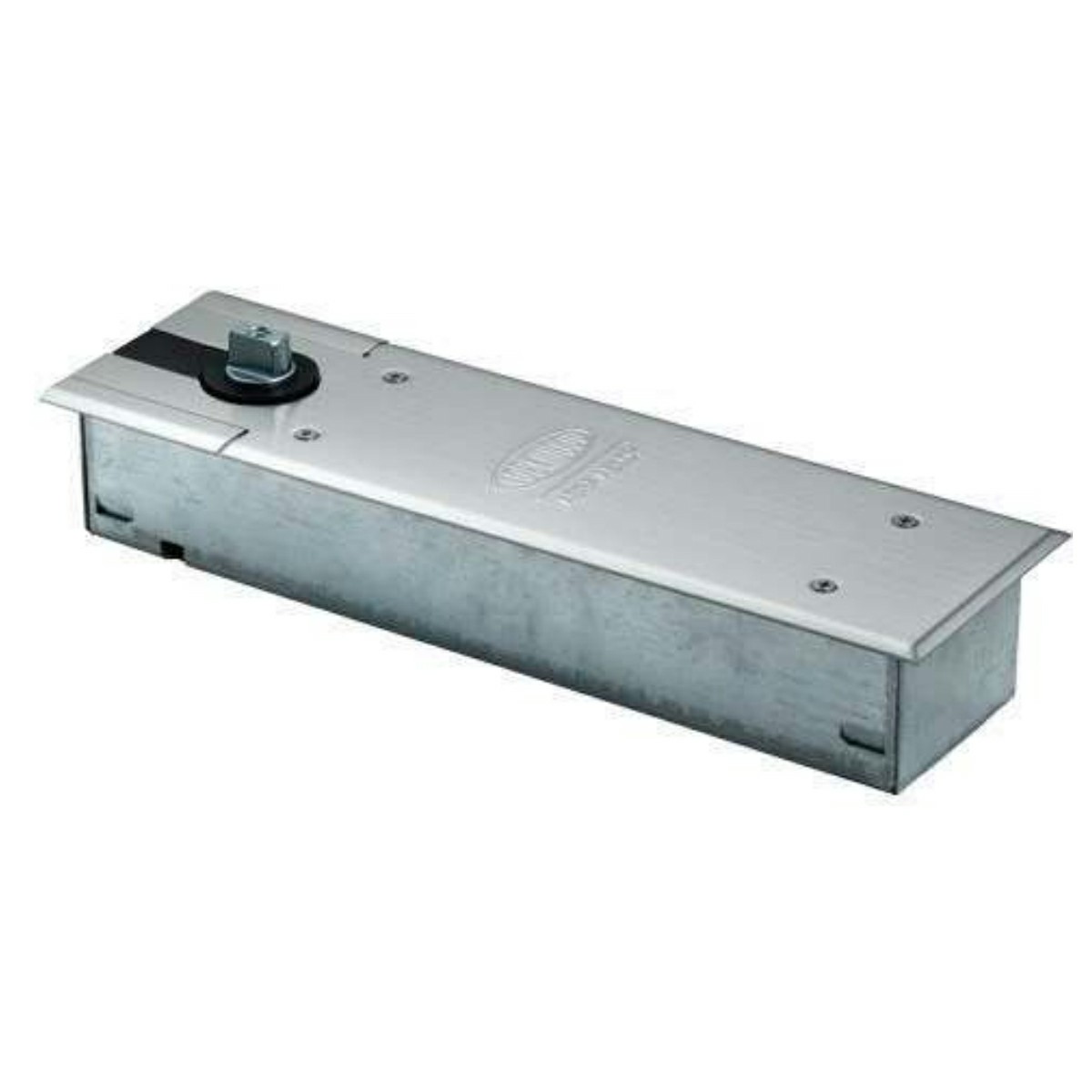

	ADD.820	ADD.840	ADD.860	ADD.880
Closing force (Nm)	16 Nm	26 Nm	33 Nm	23-56 Nm
Maximum door width	900	1000	1100	1400
Maximum door weight	120 kg	120 kg	120 kg	300 kg

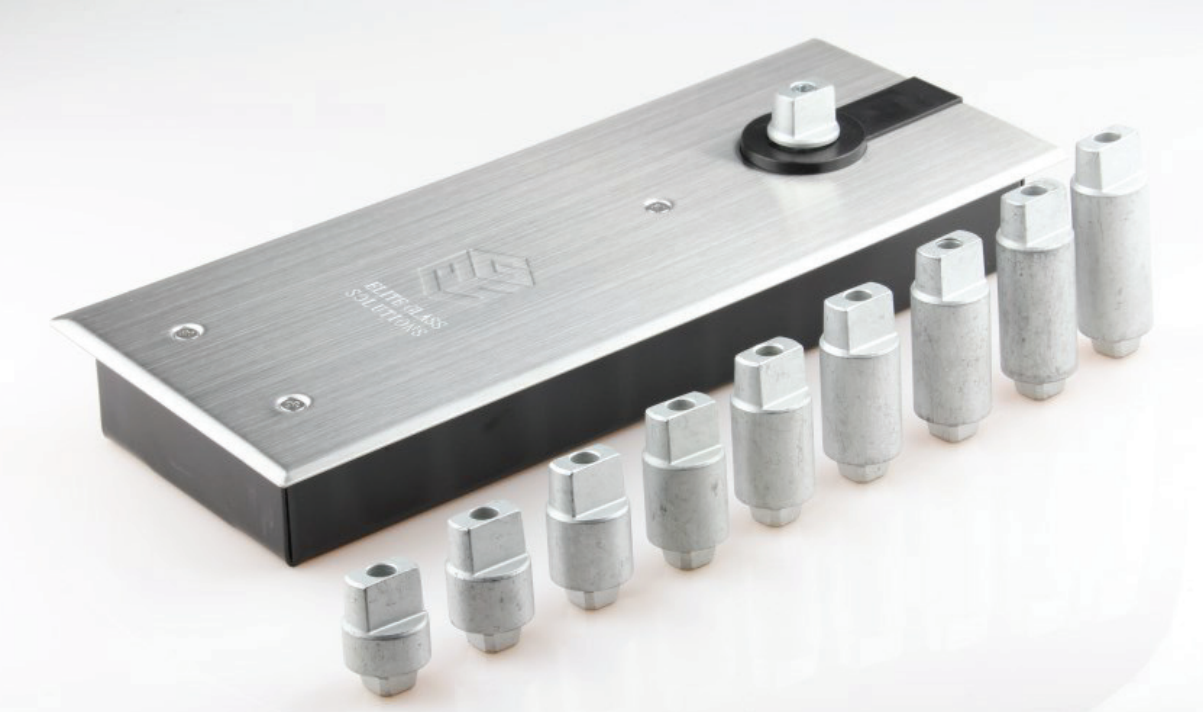

Interchangeable spindles	5 mm to 50 mm in 5 mm increments
90 deg hold open (HO)	Yes	Yes	Yes	Yes
Non hold open (NHO)	Yes	Yes	Yes	Yes
Dimension of cement box
Length (mm)	307			341
Width (mm)	108			78
Height (mm)	40			60
Adjustment in cement case
Length (mm)	7			6
Width (mm)	10			4
Height (mm)	4			4
