Why choose CASMA?

CASMA is known for its high-quality, innovative door control solutions. Here’s why you should consider CASMA products:

Tested durability

All products are tested up to 500,000 cycles as required by the UNI EN 1527 standard, ensuring long-lasting performance.

Wide range of finishes

Available in various finishes including anodized, polished, and satin options to match any design requirement.

Versatility

Suitable for both internal and external doors, including glass-to-glass, glass-to-wall, and glass-to-floor applications.

Easy installation

Comes with comprehensive installation guides and support to ensure a smooth setup process.

Finishes available from CASMA

Our hydraulic hinges are high quality alumnimium, brass and stailess stell and are available in a variety of finishes to complement any project:

Material	Finish Reference	Finish Name	Internal Doors	Internal Showers	Outside Standard Environments	Outside Special Environments.
Aluminium	610	Non Anodized	4	4	4	1
Aluminium	611	Silver Anodized	4	4	4	4
Aluminium	613	Champagne Anodized	4	2	2	1
Aluminium	614	Light Bronze Anodized	4	2	2	1
Aluminium	615	Dark Bronze Anodized	4	2	2	4
Aluminium	620	Black Anodized	4	4	4	1
Brass	710	Satin	4	3	3
Brass	712	Polished	4	3	3
Stainless Steel	810	Matt Chrome	5	5*	5*	5*
Stainless Steel	812	Polished Chrome	5	5*	5*	5*
Aluminium	665	Matt Chrome	5	5*	5*	5*
Aluminium	666	Polished Chrome	5	5*	5*	5*
Brass	770	Matt Chrome	5	5*	5*	5*
Brass	771	Polished Chrome	5	5*	5*	5*
Stainless Steel	868	Matt Chrome	5	5	5	5
Stainless Steel	869	Polished Chrome	5	5	5	5

* CAUTION: For installations in particular environments or climates (e.g. wet, acidic, and saline), it is necessary to use varnished brass. This finish protects the material from natural oxidation if it is not subject to constant cleaning when exposed to unfavorable environmental conditions.

CASMA frenum closers

Discover the innovative CASMA Speedy Frenum Hydraulic Patch, a game-changer in the realm of glass sliding door hardware. This cutting-edge hydraulic patch is designed to convert any free-swinging glass door into a fully controlled system with minimal effort. Featuring an adjustable bottom pivot and a single-valve control for closing speed, the Speedy Frenum ensures precise and reliable performance for any installation requirement. Its compliance with EN1154 norms guarantees top-tier quality and safety, making it an ideal choice for both residential and commercial applications. Whether you’re updating existing installations or embarking on a new project, the Speedy Frenum’s ease of installation and seamless integration with standard patch fittings make it the ultimate solution for modern glass doors.

The CASMA Speedy Frenum Hydraulic Patch is not only about functionality but also about enhancing the aesthetic appeal of your spaces. With its sleek design and compatibility with various finishes, it seamlessly blends into any architectural style. Perfect for high-traffic areas in commercial buildings or elegant residential settings, the Speedy Frenum offers smooth, effortless operation, ensuring both convenience and safety. Trust in the innovation and expertise behind CASMA and Elite Glass Solutions to provide hardware that meets the highest standards of performance and design. Upgrade your glass sliding doors with the Speedy Frenum and experience unparalleled quality and efficiency.

Technical data

Maximum Door Width - 90 cm

Door weight up to - 100kg

Weight of package - 1.2kg

Latus hinges

Elite Glass Solutions offers a comprehensive range of CASMA Latus hinges, designed to meet the needs of both tradies and professionals in the glass installation industry. CASMA hydraulic hinges are suitable for various applications, including showers, saunas, and commercial installations.

CASMA's Latus hinges are more than just components; they are a fundamental element in the realm of shower hardware. Known for their durability and flexibility, these hinges are critical for enhancing functionality and style in various installation environments.

CASMA Model No.	Application	Max Door Width	Max Door Weight	Glass Thickness	Cycles
4LCXS	Glass to Wall with Central Wing	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
4LLXS	Glass to Wall with Off-set Wing	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
4LVXS	Glass to Glass	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
4L8XS	Glass to Wall	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
4C9XA	Glass to Wall	900 mm (35-7/16”)	70 kg (154 lbs)	8-12 mm (5/16” - 15/32”)	500,000 cycles
4CVXA	Glass to Glass	900 mm (35-7/16”)	70 kg (154 lbs)	8-12 mm (5/16” - 15/32”)	500,000 cycles

Technical specifications

All our hydraulic hinges are tested to 500,000 cycles as required by UNI EN 1527, ensuring durability and reliability. They support a glass thickness of 8-14 mm and are suitable for door weights up to 100 kg.

Hinge frequently asked questions (FAQ)

What is a glass to wall hinge with central wing?

This type of hinge connects a glass panel directly to a wall, providing a central pivot point for smooth operation.

What is a glass to wall hinge with off-set wing?

This hinge features an off-set wing, allowing for a more stable connection between the glass panel and the wall.

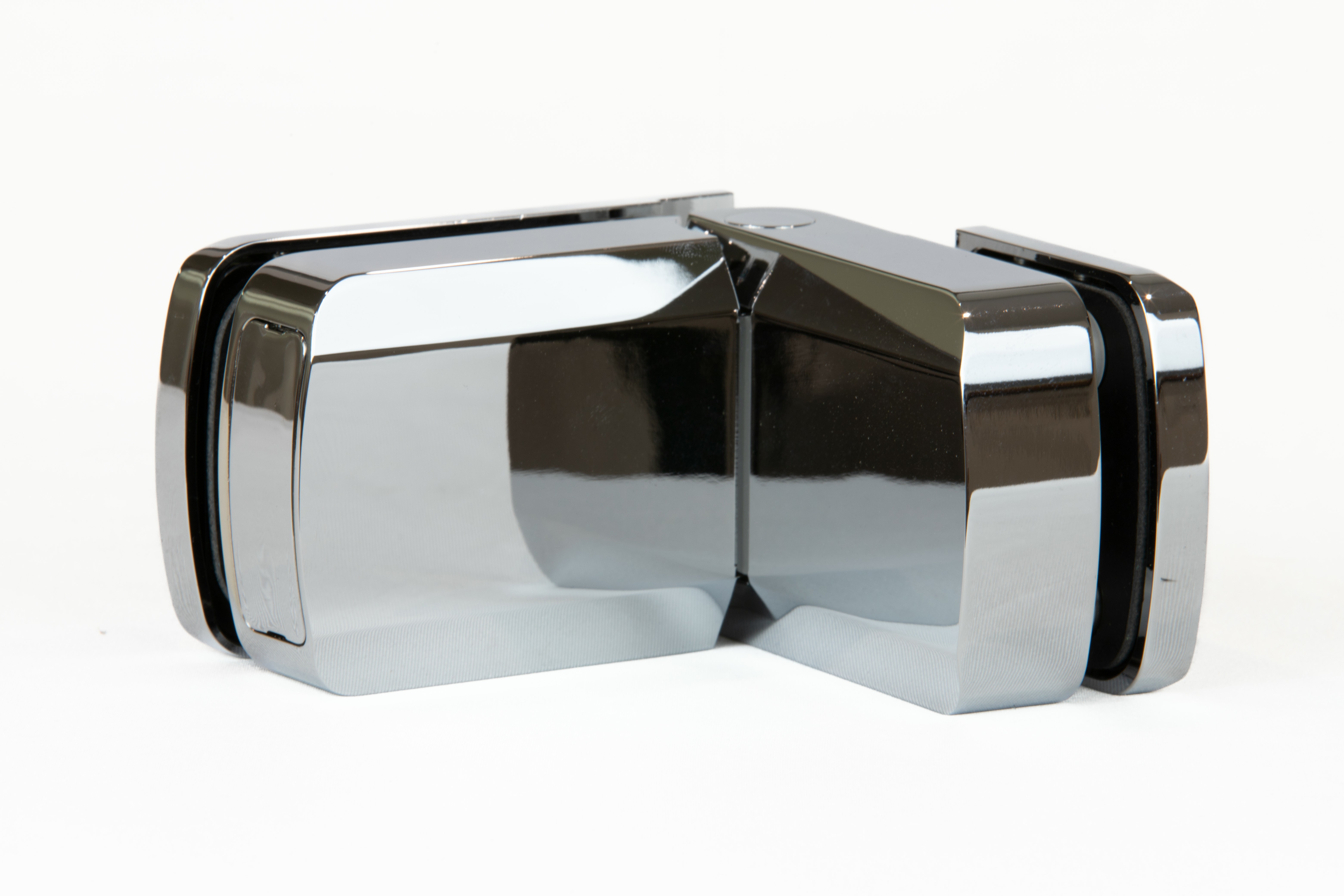

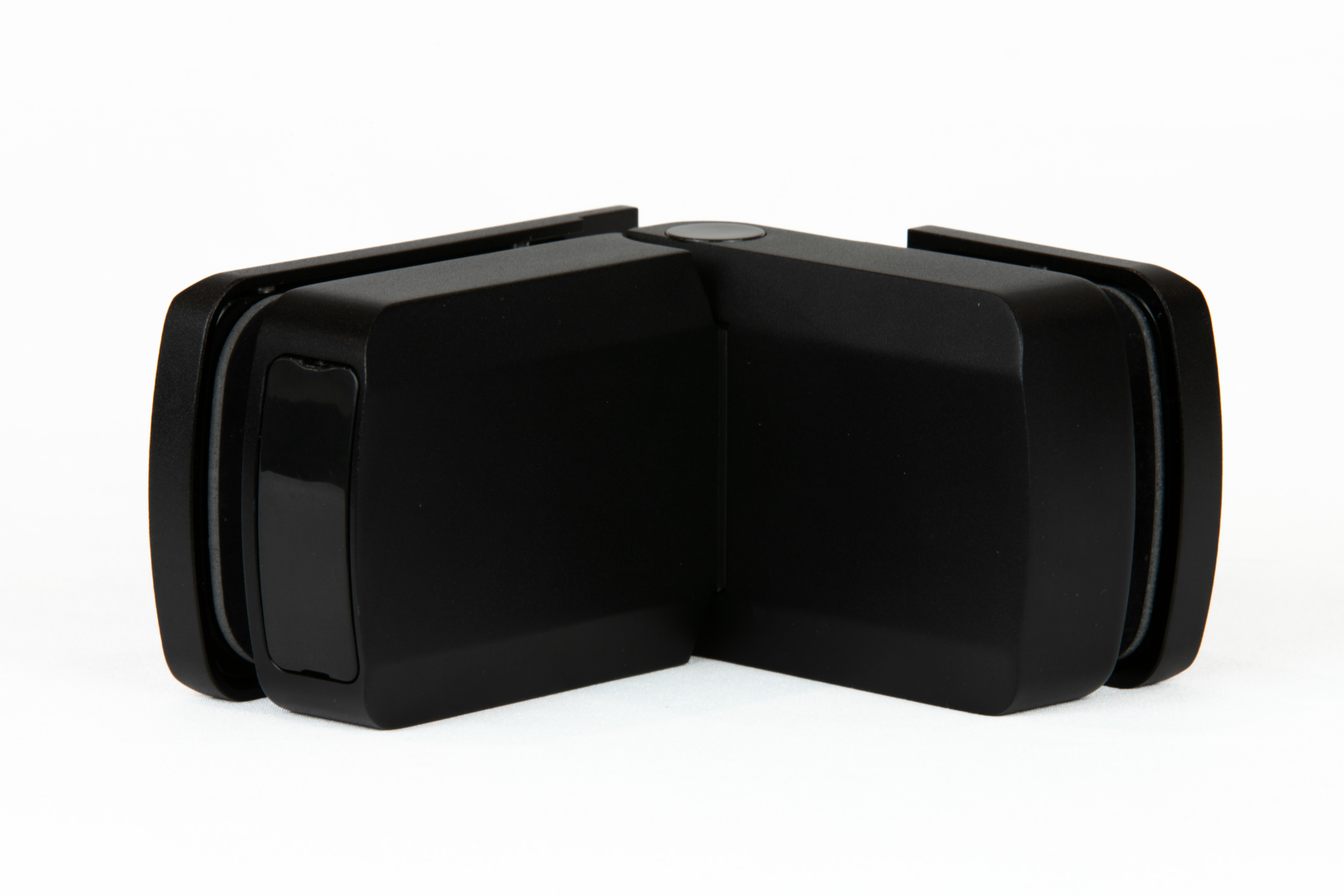

What is a glass to glass hinge?

This hinge connects two glass panels, providing a seamless and elegant transition between them.

CASMA hydraulic hinges

Product features

Explore the top features of CASMA hydraulic hinges and floor springs:

Hydraulic hinges

Designed for smooth, controlled door movements with self-closing functionality.

Floor springs

Perfect for heavy-duty applications, offering adjustable closing speeds.

Custom finishes

Available in a range of finishes to complement any project aesthetic.

Easy maintenance

Built to require minimal maintenance, ensuring hassle-free operation.

Range of hydraulic hinges

Model	Application	Max Door Width	Max Door Weight	Glass Thickness	Cycles
4FRXN	Hydraulic Hinge	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
42800	Corner Glass Application	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
4FR9N	Floor Plate	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
10180	Pivot	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
4FWXN	Displaced Glass Application	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
42900	Displaced Glass Application	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
4FR9N	Floor Plate	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
10190	Pivot	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
4FXXN	In Profile or Wood Application	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
32400	Pivot for Profiles	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
4LCXS	Glass to Wall with Central Wing	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
4LLXS	Glass to Wall with Off-set Wing	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
4LVXS	Glass to Glass	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
4A0XR	In Profile or Wood Application	600 mm (23-5/8”)	40 kg (88 lbs)	8-12.7 mm (5/16” - 1/2”)	500,000 cycles

CASMA floor springs

Designed for superior functionality and durability, these products are perfect for a variety of glass installation projects.

Model	Application	Max Door Width	Max Door Weight	Glass Thickness	Cycles
4LCXS	Glass to Wall with Central Wing	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
4LLXS	Glass to Wall with Off-set Wing	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
4LVXS	Glass to Glass	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
4FWXN	Displaced Glass Application	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
4FXXN	In Profile or Wood Application	1000 mm (39-3/8”)	100 kg (220 lbs)	8-14 mm (5/16” - 9/16”)	500,000 cycles
M25	Floor Spring	1400 mm (55-1/8”)	200 kg (440 lbs)	N/A	500,000 cycles
M60	Floor Spring	1100 mm (43-5/16”)	160 kg (352 lbs)	N/A	500,000 cycles
KS3000	Floor Spring	1100 mm (43-5/16”)	120 kg (264 lbs)	N/A	500,000 cycles
M68	Floor Spring	950 mm (37-3/8”)	100 kg (220 lbs)	N/A	500,000 cycles
SM68	Floor Spring	950 mm (37-3/8”)	100 kg (220 lbs)	N/A	500,000 cycles

Hinge and floor spring frequently asked questions

What are hydraulic hinges?

Hydraulic hinge close-up — CASMA Hydraulic Hinge with smooth, controlled movement.

Hydraulic hinges are designed to provide smooth and controlled door movements, often featuring self-closing mechanisms for added convenience.

What are floor springs?

Floor spring installed in a commercial space — CASMA Floor Spring providing reliable support for heavy doors.

Floor springs are door closers mounted in the floor, designed to provide support and controlled closing for heavy doors, making them ideal for commercial spaces.

What finishes are available?

Various finishes for CASMA products — Various finishes available for CASMA products.

CASMA products are available in a variety of finishes, including anodized, polished, and satin options. Custom finishes are also available upon request to meet specific project needs.

Why choose CASMA products?

With CASMA quality products and Elite's expert advice, you're sure to find the perfect hardware for your next project.

Expertise and support

At Elite Glass Solutions, we understand the importance of both form and function. Our team of experts is here to assist you in selecting the right hardware for your project, ensuring a perfect fit and finish. Whether you're a tradie working on a bathroom renovation or an architect designing a new commercial space, we have the solutions you need.
