RL1 PSA Bottom Rail - Non-Locking - Polished Silver

Bottom Rail - Non-Locking - Polished Stainless Anodised
Bottom Rail - Non-Locking - Polished Stainless Anodised
Image of Bottom Rail - Non-Locking - Polished Silver
Bottom Rail - Non-Locking - Polished Stainless Anodised
jpg Image
146 Kb
jpg Image
131 Kb
Image 1
Image 1
jpg Image
3 Kb
Image 2
Image 2
jpg Image
7 Kb
Image 3
Image 3
jpg Image
10 Kb

Product Details

  • Bottom door rail Non-Locking
  • Up to 1200mm wide rails
  • 1200-1500mm wide rails available on request

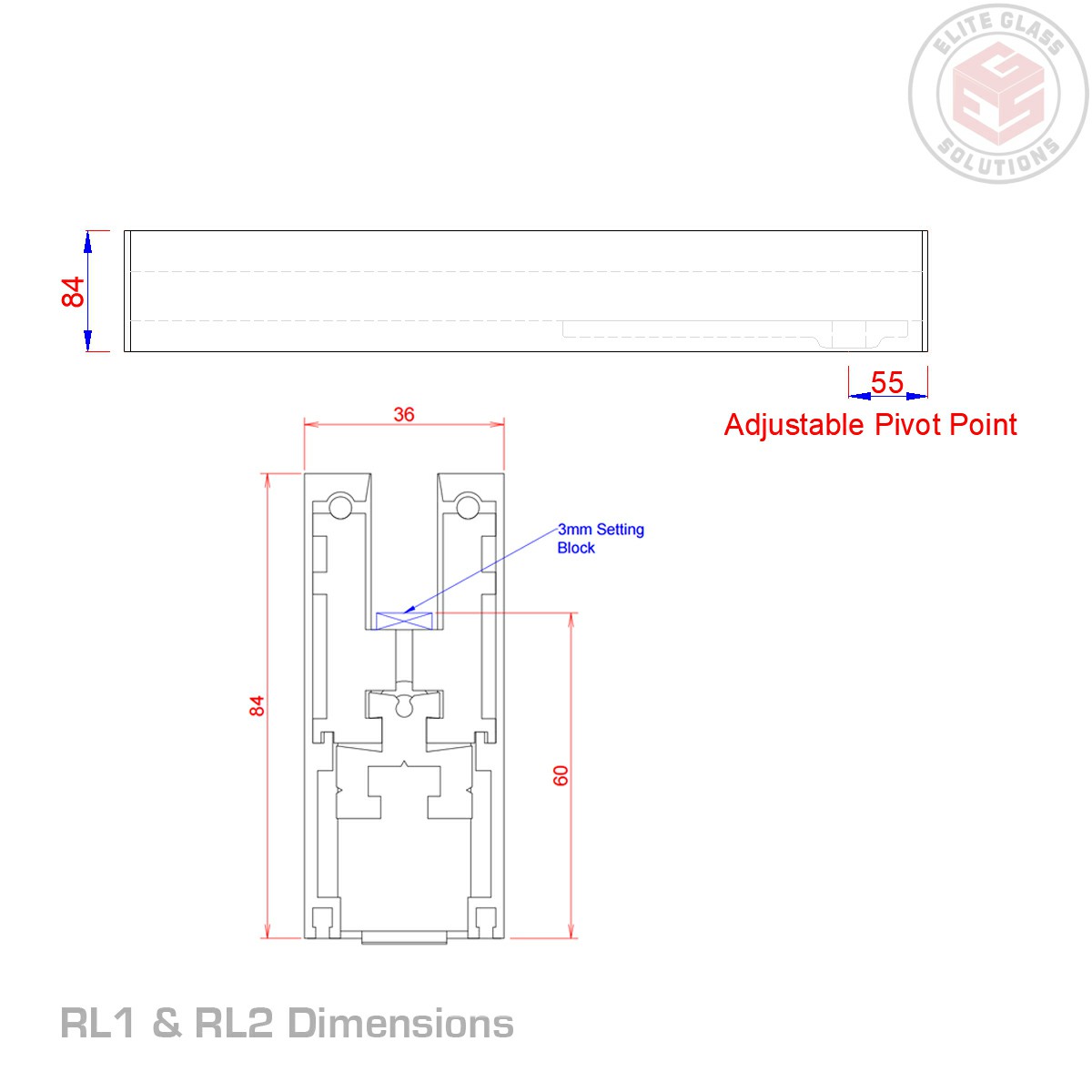

Technical details

  • 85mm high
  • Anodised cover plates and end caps
  • Complete with pivot strap
  • Compatible with most floor springs and floor pivots
  • Adjustable pivot point set at 55mm
  • Maximum door weight - 150kgs

Specify at time of order

  • Glass thickness
  • Glass door panel width
  • Finish required
  • Confirm pivot setting if other then 55mm

Instruction video

Buy Now Bottom Rail - Non-Locking - Polished Silver

Qty Product
RL1 PSA Bottom Rail - Non-Locking - Polished Silver
Contact Us For Pricing
