RL3 PSA Bottom Rail - Locking - Polished Silver

Product Details

• Bottom door rail with lock
• Up to 1200mm wide rails
• 1200-1500mm wide rails available on request

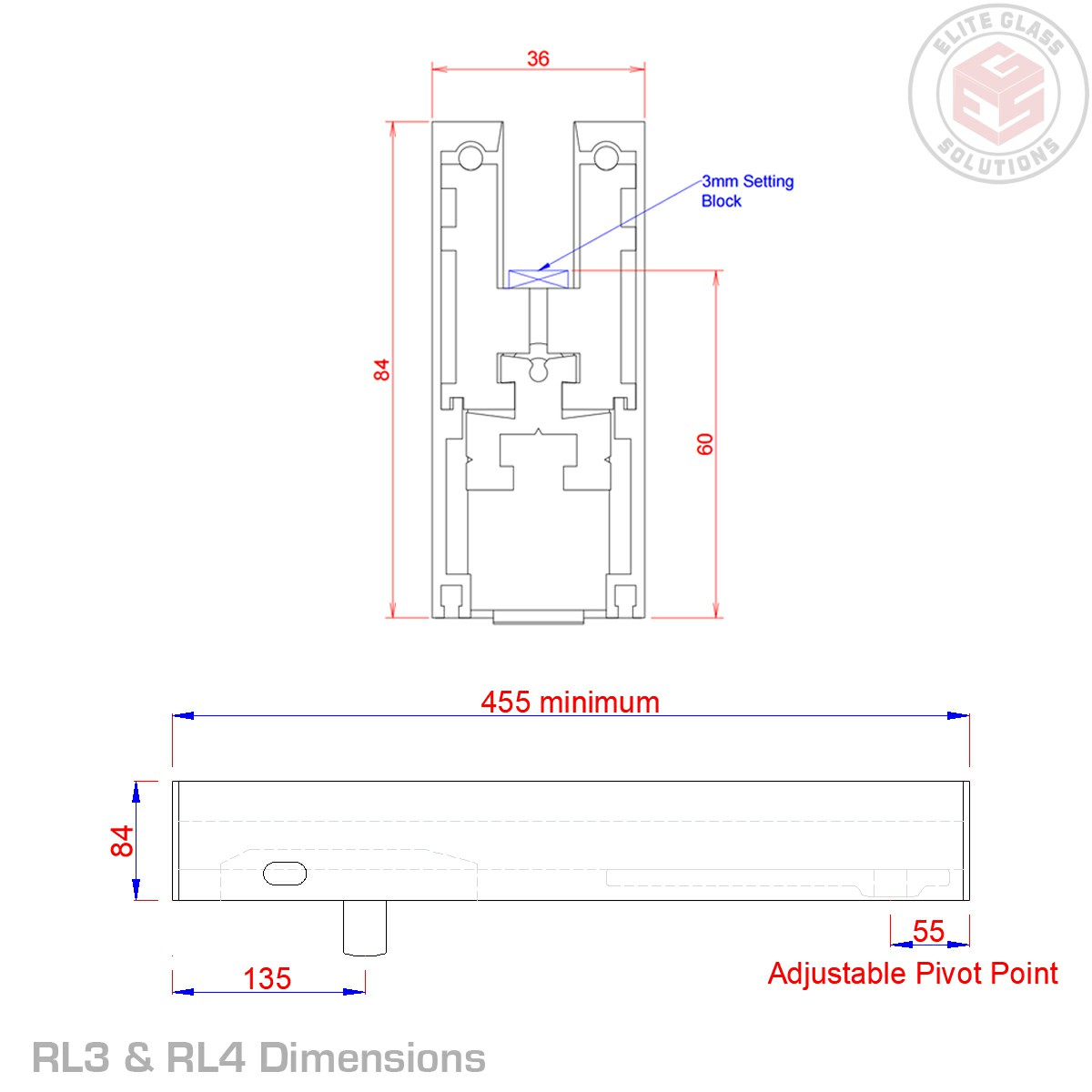

Technical details

• 85mm high
• Anodised cover plates and end caps
• Complete with pivot strap
• Compatible with most floor springs and floor pivots
• Adjustable pivot point set at 55mm
• Maximum door weight - 150kgs

Specify at time of order

• Glass thickness
• Glass door panel width
• Finish required
• Confirm pivot setting if other then 55mm
• Cylinder configurations:
  • Single cylinder
  • Single turn
  • Double cylinder
  • Cylinder + turn
